Object-Oriented Design & Patterns

Chapter 9

Multithreading

Printable notes.

Chapter Topics

• Thread Basics
• Thread Synchronization
• Animations

Threads

• Thread: program unit that is executed independently
• Multiple threads run simultaneously
• Virtual machine executes each thread for short time slice
• Thread scheduler activates, deactivates threads
• Illusion of threads running in parallel
• Multiprocessor computers: threads actually run in parallel

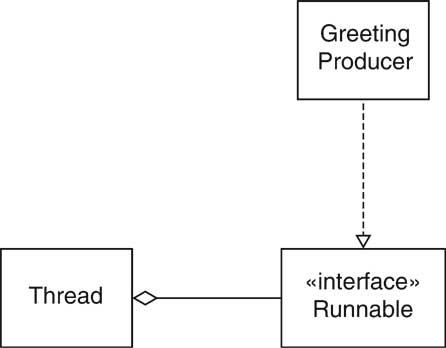

Running Threads

• Define class that implements Runnable
• Runnable has one method
  void run()
• Place thread action into run method
• Construct object of runnable class
• Construct thread from that object
• Start thread

Running Threads

public class MyRunnable implements Runnable
{
   public void run()
   {
      thread action
   }
}
...
Runnable r = new MyRunnable();
Thread t = new Thread(t);
t.start();

Thread Example

• Run two threads in parallel
• Each thread prints 10 greetings


  for (int i = 1; i <= 10; i++)
  {
     System.out.println(i + ": " + greeting);
     Thread.sleep(100);
  }


• After each printout, sleep for 100 millisec
• All threads should occasionally yield control
• sleep throws InterruptedException

Thread Example

• Ch9/greeting/GreetingProducer.java
• Ch9/greeting/ThreadTester.java

Thread Example

• Note: output not exactly interleaved


1: Hello, World!
1: Goodbye, World!
2: Hello, World!
2: Goodbye, World!
3: Hello, World!
3: Goodbye, World!
4: Hello, World!
4: Goodbye, World!
5: Hello, World!
5: Goodbye, World!
6: Hello, World!
6: Goodbye, World!
7: Hello, World!
7: Goodbye, World!
8: Goodbye, World!
8: Hello, World!
9: Goodbye, World!
9: Hello, World!
10: Goodbye, World!
10: Hello, World!

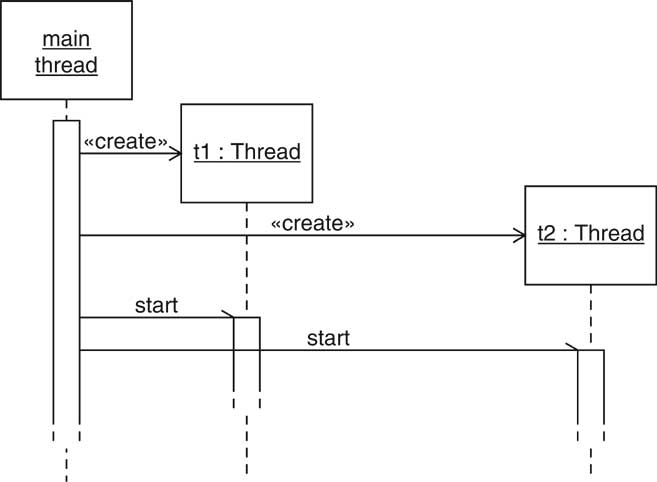

Starting Two Threads

Thread States

• Each thread has
  • thread state
  • priority
• Thread states:
  • new (before start called)
  • runnable
  • blocked
  • dead (after run method exits)

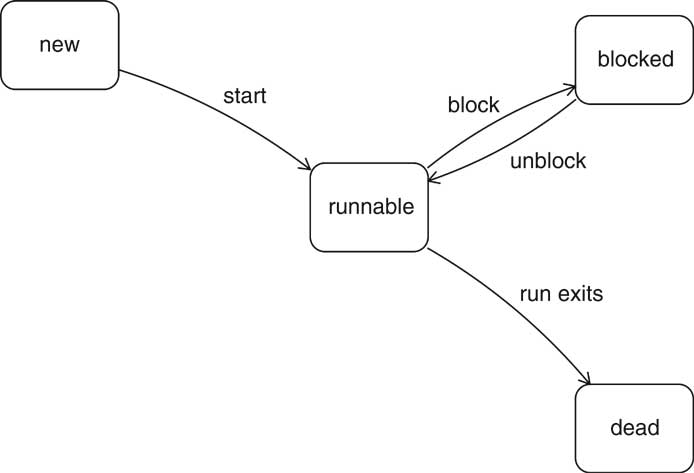

Thread States

Blocked Thread State

• Reasons for blocked state:
  • Sleeping
  • Waiting for I/O
  • Waiting to acquire lock (later)
  • Waiting for condition (later)
• Unblocks only if reason for block goes away

Scheduling Threads

• Scheduler activates new thread if
  • a thread has completed its time slice
  • a thread has blocked itself
  • a thread with higher priority has become runnable

• Scheduler determines new thread to run
  • looks only at runnable threads
  • picks one with max priority

Terminating Threads

• Thread terminates when run exits
• Sometimes necessary to terminate running thread

• Don't use deprecated stop method
• Interrupt thread by calling interrupt
• Calling t.interrupt() doesn't actually interrupt t; just sets a flag

• Interrupted thread must sense interruption and exit its run method

• Interrupted thread has chance to clean up

Sensing Interruptions

• Thread could occasionally call
  Thread.currentThread().isInterrupted()
• sleep, wait throw InterruptedException when thread interrupted
• . . . and then the interruption status is cleared!

• More robust: Sleep occasionally, catch exception and react to interruption
• Recommendation: Terminate run when sensing interruption

Sensing Interruptions

public class MyRunnable implements Runnable
{
   public void run()
   {
      try
      {
         while (...)
         {
            do work
            Thread.sleep(...);
         }
      }
      catch (InterruptedException e) {}
      clean up
   }
}

Thread Synchronization

• Use bounded queue from chapter 3

• Each producer thread inserts greetings
• Each consumer thread removes greetings
• Two producers, one consumer

Producer Thread

int i = 1;
while (i <= greetingCount)
{
   if (!queue.isFull())
   {
      queue.add(i + ": " + greeting);
      i++;
   }
   Thread.sleep((int)(Math.random() * DELAY));
}

Consumer Thread

int i = 1;
while (i <= greetingCount)
{
   if (!queue.isEmpty())
   {
      Object greeting = queue.remove();
      System.out.println(greeting);
      i++;
   }
   Thread.sleep((int)(Math.random() * DELAY));
}

Expected Program Output

1: Hello, World!
1: Goodbye, World!
2: Hello, World!
3: Hello, World!
...
99: Goodbye, World!
100: Goodbye, World!

Why is Output Corrupted?

• Sometimes program gets stuck and doesn't complete
• Can see problem better when turning debugging on
  queue.setDebug(true);

• Ch9/queue1/ThreadTester.java
• Ch9/queue1/Producer.java
• Ch9/queue1/Consumer.java
• Ch9/queue1/BoundedQueue.java

Race Condition Scenario

• First thread calls add and executes
  elements[tail] = anObject;
• First thread at end of time slice
• Second thread calls add and executes
  elements[tail] = anObject;
  tail++;
• Second thread at end of time slice
• First thread executes
  tail++;

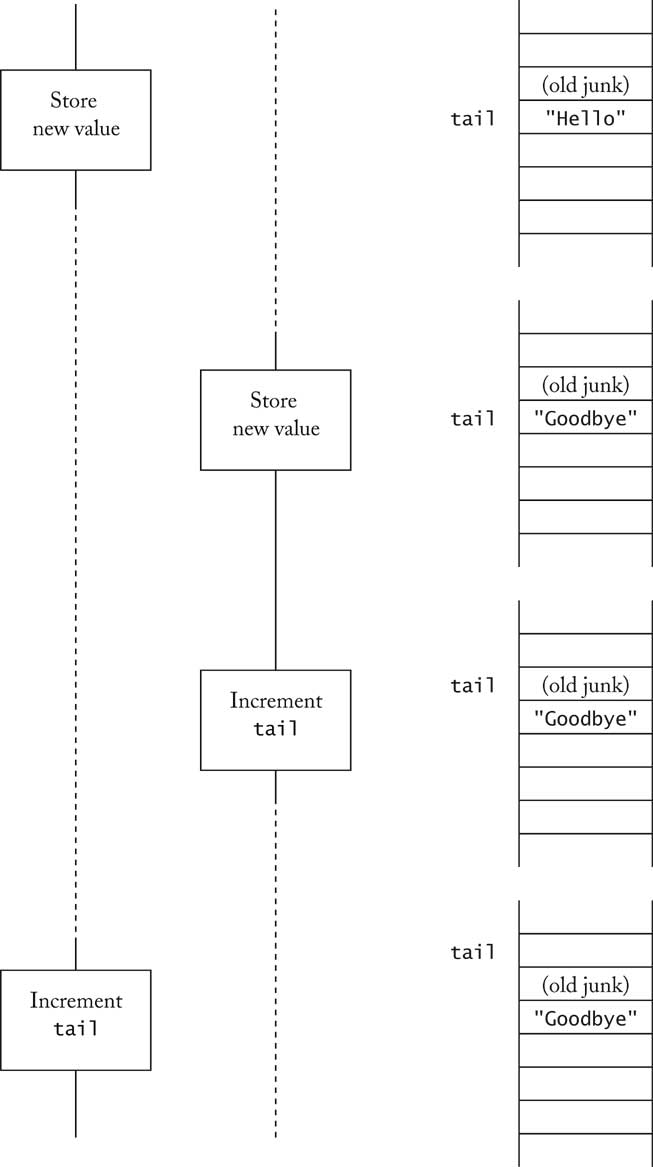

Race Condition Scenario

Locks

• Thread can acquire lock
• When another thread tries to acquire same lock, it blocks
• When first thread releases lock, other thread is unblocked and tries again
• Two kinds of locks
• Objects of class implementing java.util.concurrent.Lock interface type, usually ReentrantLock
• Locks that are built into every Java object

Reentrant Locks

aLock = new ReentrantLock();
. . .
aLock.lock();
try
{
   protected code
}
finally
{
   aLock.unlock();
}

Scenario with Locks

1. First thread calls add and acquires lock, then executes
   elements[tail] = anObject;
2. Second thread calls add and tries to acquire lock, but it is blocked

3. First thread executes
   tail++;
4. First thread completes add, releases lock

5. Second thread unblocked
6. Second thread acquires lock, starts executing protected code


Deadlocks

• Not enough to synchronize add, remove
• if (!queue.isFull()) queue.add(...);
  can still be interrupted
• Must move test inside add method


  public void add(E newValue)
  {
     queueLock.lock();
     try
     {
        while (queue is full)
           wait for more space
        . . .
     }
     finally { qeueLock.unlock(); }
  }


• Problem: nobody else can call remove

Avoiding Deadlocks

• Use condiiton object to manage "space available" condition


  private Lock queueLock = new ReentrantLock();
  private Condition spaceAvailableCondition
     = queueLock.newCondition();


• Call await when condition is not fulfilled:


  public void add(E newValue)
  {
     . . .
     while (size == elements.length)
        spaceAvailableCondition.await();
     . . .
  }

Avoiding Deadlocks

• Waiting thread is blocked
• Condition object manages set of threads that wait for the condition to change

• To unblock, another thread must call signalAll on the same condition object
• Call when state changes


  public E remove()
  {
     . . .
     E r = elements[head];
     . . .
     spaceAvailableCondition.signalAll(); // Unblock waiting threads
     return r;
  }


• All waiting threads removed from wait set, unblocked
• Ch9/queue2/BoundedQueue.java


Object Locks

• Each object has a lock
• Calling a synchronized method acquires lock of implicit parameter
• Leaving the synchronized method releases lock
• Easier than explicit Lock objects


  public class BoundedQueue<E>
  {
     public synchronized void add(E newValue) { . . . }
     public synchronized E remove() { . . . }
     . . .
  }

Object Locks

• Each implicit lock has one associated (anonymous) condition object
• Object.wait blocks current thread and adds it to wait set

• Object.notifyAll unblocks waiting threads


  public synchronized void add(E newValue)
     throws InterruptedException
  {
     while (size == elements.length) wait();
     elements[tail] = anObject;
     . . .
     notifyAll(); // notifies threads waiting to remove elements
  }

• Ch9/queue3/BoundedQueue.java

Visualizing Locks

• Object = phone booth

• Thread = person
• Locked object = closed booth

• Blocked thread = person waiting for booth to open


Visualizing Locks

Algorithm Animation

• Use thread to make progress in algorithm
• Display algorithm state
• Example: Animate Ch9/animation/Sorter.java

• Sleeps inside compare method
• Pass custom comparator
  Comparator<Double> comp = new
     Comparator<Double>()
     {
        public void compare(Double d1, Double d2)
        {
           sleep
           return comparison result
        }
     };

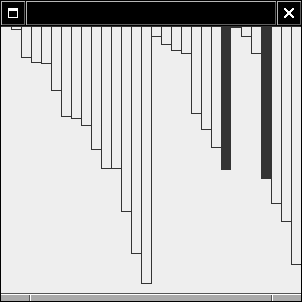

Algorithm Animation

• Ch9/animation1/ArrayComponent.java
• Ch9/animation1/AnimationTester.java

Pausing and Running the Animation

• Want to pause animation until "Run" or "Step" button is clicked
• Need to coordinate UI thread, animation thread
• Try to use built-in thread-safe construct in java.util.concurrent
• Trick: Use a blocking queue
• Button click adds string "Run" or "Step" to queue
• Animation thread calls take on the queue, blocks if no string inserted
• Ch9/animation2/Sorter.java
• Ch9/animation2/AnimationTester.java
