Object-Oriented Design & Patterns

Cay S. Horstmann

Chapter 1

A Crash Course in Java

Chapter Topics

• Hello, World  in Java

• Documentation Comments
• Primitive Types
• Control Flow Statements
• Object References
• Parameter Passing
• Packages
• Basic Exception Handling
• Strings
• Reading Input
• Array Lists and Linked Lists
• Arrays

• Static Fields and Methods
• Programming Style

"Hello, World" in Java

• Simple but typical class


  Ch1/helloworld/Greeter.java

• Features:

  • Constructor Greeter(String aName)
  • Method sayHello()
  • Instance field name

• Each feature is tagged public or private

"Hello, World" in Java

• Construct new objects with new operator


  new Greeter("World")


  • new allocates memory for new object and invokes object constructor
  • constructor is a method with the class name used to initialize new objects
  • a class may have several constructors, with different parameter lists (overloading)

  • default constructor takes no parameters. E.g.


      public Greeter()
      {
          name = "Java";
      }

• Can invoke method on newly constructed object


  new Greeter("World").sayHello()


• More common: store object reference in object variable


  Greeter worldGreeter = new Greeter("World");


• Then invoke method on variable:


  String greeting = worldGreeter.sayHello();


"Hello, World" in Java

• Construct separate class to test your class


  Ch1/helloworld/GreeterTester.java

• main method is called when program starts
• main is static: it doesn't operate on any objects
• There are no objects yet when main starts
• In OO program, main constructs objects and invokes methods


Using the SDK

• Create a new directory to hold your files
• Use a text editor to prepare files (Greeter.java, GreeterTest.java)
• Open a shell window
• cd to directory that holds your files
• Compile and run


  javac GreeterTest.java
  java GreeterTest


  Note that Greeter.java is automatically compiled.

• Output is shown in shell window

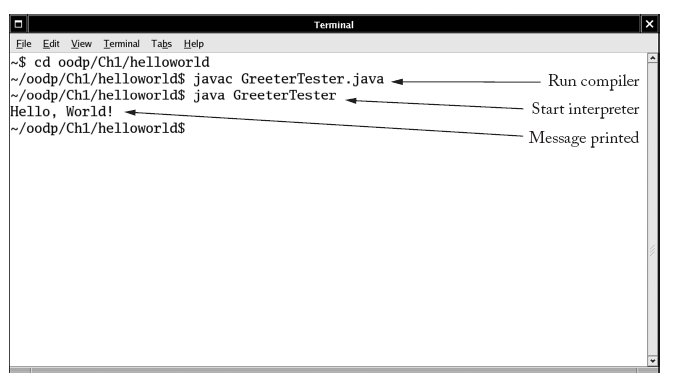

Using the SDK

Using BlueJ

• Download BlueJ from http://www.bluej.org

• No test program required
• Select Project->New and supply directory name
• Click on New Class... and type in Greeter class
• Compile the class
• Right-click the class to construct an object
• Right-click the object to invoke a method

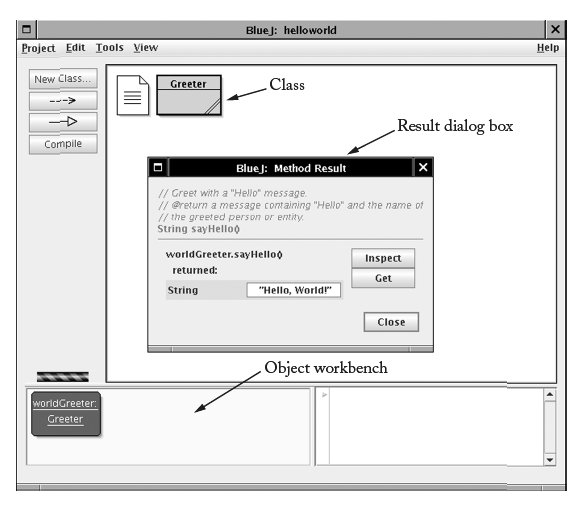

Using BlueJ

Documentation Comments

• Delimited by /** ... */
• First sentence = summary
• @param parameter explanation
• @return explanation
• Javadoc utility extracts HTML file

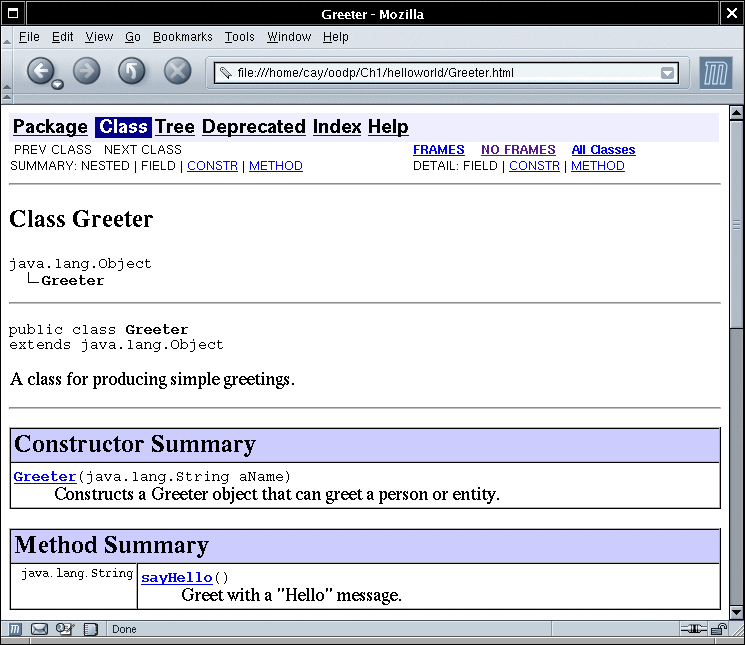

Documentation Comments - Summary

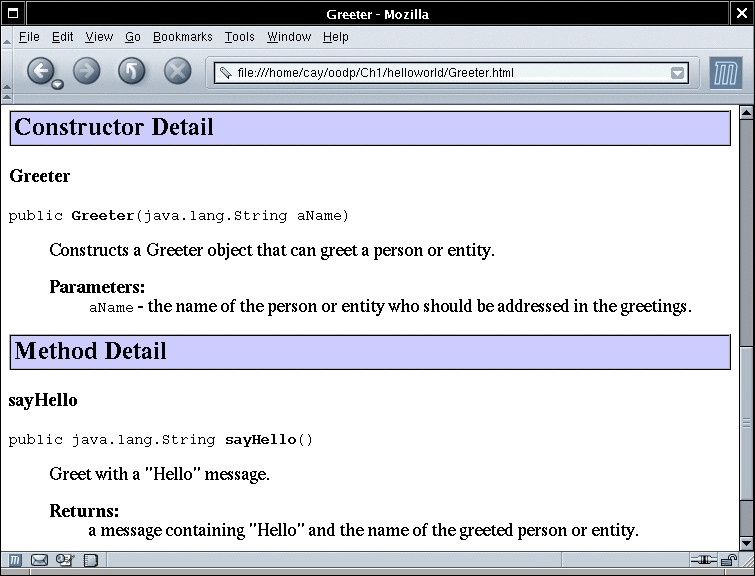

Documentation Comments - Detail

Documentation Comments

• Easy to keep documentation in sync with code
• You must document all classes and methods
• The pros do it--check out the API docs
• Install and bookmark the API docs now!

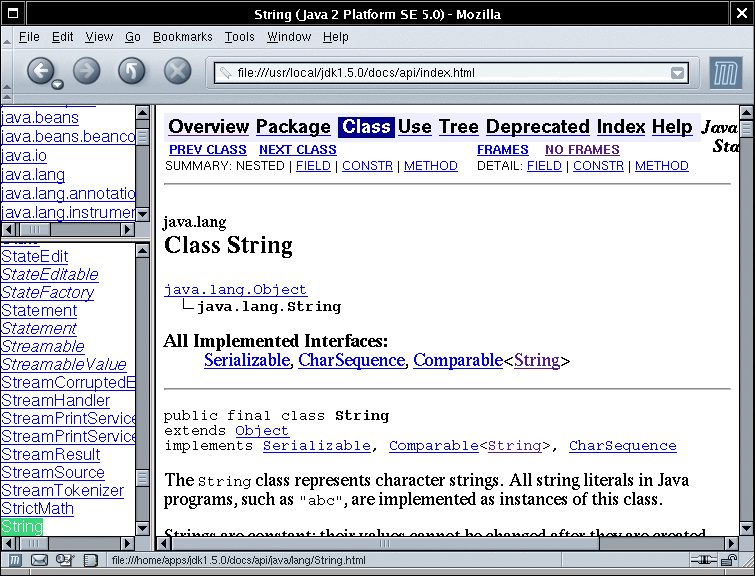

Documentation Comments - API Docs

Primitive Types

• 8 primitive types
• int, long, short, byte
• double, float

• char
• boolean
• suffixes L = long, F = float
• character constants 'a', '\n', '\x2122'
• Casts (int) x, (float) x
• Math class has methods that operate on numbers:


  y = Math.sqrt(x);


Simple Application: compute factorial

/** Computes and displays n! */
public class Factorial {

    /** main function
      * @param args the command line arguments, stored in a String array
      */
    public static void main(String[] args) {
        int f = 1;

        // convert command line argument to integer type:
        int n = Integer.parseInt(args[0]);

        // calculate factorial
        while (n > 1) {
            f = f * n;
            n--;
        }

        // display result:
        System.out.println(args[0] + "! = " + f);
    }
}

Variables

Variable declaration:

type name

Scope Categories:

Example:

  class Myclass {
    private int p;

    // ....
    public void method() {
       int i;
       for (i=0; i<10; i++) {
          int j = i * p;
          // ...
       }

       System.out.println("i=" + i);
       System.out.println("j=" + j);
     }
    }
   }

Variable initialization:

    float pi = 3.1415;

Final Variables:

    final float e = 2.71828183;

Primitive data types:

Reference type:

Arrays, classes, and interfaces are reference types.

    Greeter g1 = new Greeter("Students");

    Greeter g2 = g1;

    int v[] = new int[100];

Operators

• Arithmetic Operators
• Relational and Conditional Operators
• Shift and Logical Operator
• Assignment Operators

Expressions, Statements, and Blocks

Control Flow Statements

Control Flow

• if

  if (logical condition) {
      // condition is true
  }
  else {
      // condition is false
  }



  Example:


  Employee emp;
  .....
  if (emp.salary() < 18000) {
      tax = 0.10;
  } else {
      tax = 0.15;
  }


• while


  while (logical condition) {
      // repeat while condition is true
  }

  Example: :


  int n = 100;
  int sum = 0;
  while (n > 0) {
      sum += n;
      n--;
  }


• do/while

  do {
      // repeat statement block between { and } while condition is true
  } while (condition);


  Example:



  int n = 100;
  int sum = 0;
  do {
     sum += n;
     n--;
  } while (n > 0);


• for

  for (initializers; condition; updates) {
      // repeat statements while condition is true
  }


  Variable can be declared in for loop:


  for (int i = 1; i <= n; i++)
  {
   . . .
  }
  // i no longer defined here

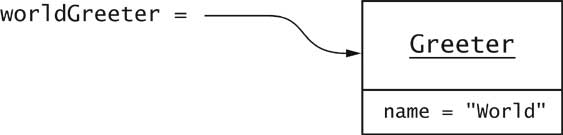

Object References

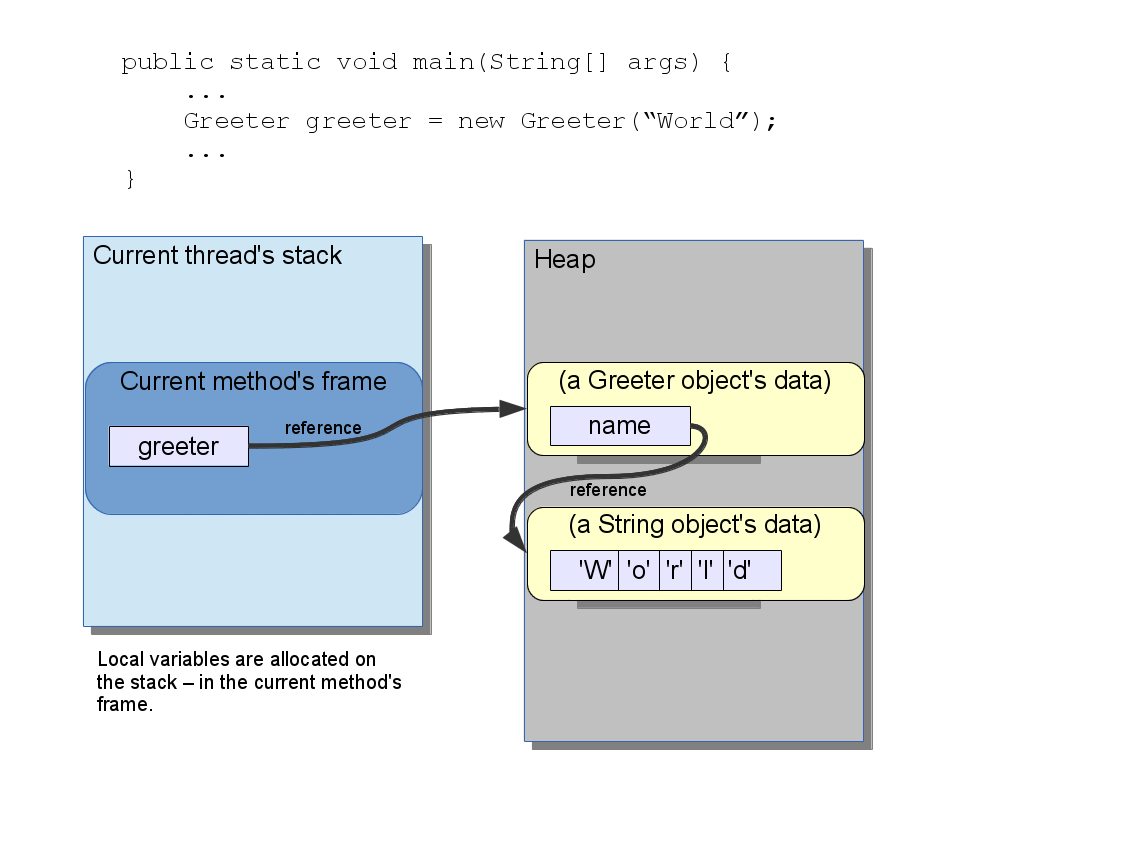

• Object variable holds a reference


  Greeter worldGreeter = new Greeter("World");


  An object reference describes the location in JVM memory of an object
  and is used to uniquely identify an object:

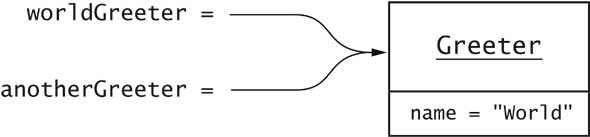

• Can have multiple references to the same object


  Greeter anotherGreeter = worldGreeter;




• Any operation executed on any variable referencing the same object affects
  the object itself. Assume a method setName(String newName) that
  changes the name Greeter instance variable.

  Executing this:

  anotherGreeter.setName("Dave");

  // now worldGreeter.sayHello() returns "Hello, Dave!"


  changes the object referred by both worldGreeter and anotherGreeter.

More About Objects

• The root class of the Java class hierarchy is Object _(doc) .
• To create a copy of an object, use Object's clone() method.


  protected Object clone()
                 throws CloneNotSupportedException


• Library objects generally implement clone(). Example: create a copy of a Date _(doc) object:


  // new Date object with current time
  Date dateNow = new Date();
  ...
  // create identical copy of nowDate
  Date dateCopy = (Date) dateNow.clone();


  dateNow and dateCopy reference each a different object,
  but with the same data. Uses cast because clone returns Object reference.

• Custom objects should implement (override) clone().

The null Reference

• null refers to no object
• Can assign null to object variable:


  worldGreeter = null;


• Can test whether reference is null


  if (worldGreeter == null) . . .


• Dereferencing null causes NullPointerException
  Example:


  ...
  worldGreeter = null;
  ...
  worldGreeter.sayHello();     // this statement causes the exception


The this Reference

• Refers to implicit parameter of method call
• Example: Equality testing


  public boolean equals(Greeter other)
  {
   if (this == other) return true;
   return name.equals(other.name);
  }


• Example: Constructor


  public Greeter(String name)
  {
   this.name = name;
  }


  Note that instance variables is qualified with this to avoid name clashes with method parameters.

Deallocation of Java Objects - The Garbage Collector

• Objects are created with the new operator. new returns a reference to the new object.
  In Java there is no explicit memory (object) deallocation user operator.
  When an object looses all references, it becomes eligible for deallocation
  by the JVM garbage collector. (quick intro here).

• Before an object is actually destroyed, the GC invokes its finalize() method,
  defined in class Object. This method may implement custom code for deallocating
  resources (e.g. file descriptors, sockets,...), although it is not advisable - better use
  an explicit method for cleanup.


• Example in LifeSample.java.
• Invoke the JVM garbage collector with the System.gc(); method call.
  Invoke GC before long sequences of memory intensive code.

Parameter Passing

• A formal parameter is a variable declared in a function heading.
• An actual parameter is a variable or expression listed in a call to
  a function.
• Implicit parameter is the object on which methid is invoked,
  named this.
• Explicit parameters are supplied between paranthesis.

• Java uses "Call By Value":
  A method receives copy of parameter value.


• Non-reference actual parameters are not changed by method call. Example:



  public class DB
    // ineffective method to calculate dB:
    public static void toDecibell(double x)
    {
      x = 10.0 * Math.log10(x);   // change formal parameter value
    }
  };

  .......

  power = 100.0;           // 100 Watts.
  DB.toDecibell(power);    // conversion to dBW fails.  power == 100 after call



• Object reference actual parameter lets method modify object:


  public void copyNameTo(Greeter other)
  {
     other.name = this.name;
  }
  ......

  Greeter worldGreeter = new Greeter("World");

  Greeter daveGreeter = new Greeter("Dave");


  worldGreeter.copyNameTo(daveGreeter);






No Reference Parameters

• Java has no "call by reference"

• public void copyLengthTo(int n)
  {
   n = name.length();
  }
  public void copyGreeterTo(Greeter other)
  {
   other = new Greeter(name);
  }


• Neither call has any effect after the method returns


  int length = 0;
  worldGreeter.copyLengthTo(length); // length still 0
  worldGreeter.copyGreeterTo(daveGreeter) // daveGreeter unchanged


Packages

• Classes are grouped into packages
• Package names are dot-separated identifier sequences


  java.util
  javax.swing
  com.sun.misc
  edu.sjsu.cs.cs151.alice


• Unique package names: start with reverse domain name

Packages

• Add package statement to top of file


  package edu.sjsu.cs.cs151.alice;
  public class Greeter { . . . }


• Class without package name is in "default package"
• Full name of class = package name + class name


  java.util.ArrayList
  javax.swing.JOptionPane


Importing Packages

• Tedious to use full class names
• import allows you to use short class name


  import java.util.Scanner;
  . . .
  Scanner a; // i.e. java.util.Scanner


• Can import all classes from a package


  import java.util.*;


Importing Packages

• Cannot import from multiple packages


  import java.*.*; // NO


• If a class occurs in two imported packages, import is no help.


  import java.util.*;
  import java.sql.*;
  . . .
  java.util.Date d; // Date also occurs in java.sql


• Never need to import java.lang.


Packages and Directories

• Package name must match subdirectory name.


  edu.sjsu.cs.sjsu.cs151.alice.Greeter


  must be in subdirectory


  basedirectory/edu/sjsu/cs/sjsu/cs151/alice




• Always compile from the base directory


  javac edu/sjsu/cs/sjsu/cs151/alice/Greeter.java


  or


  javac edu\sjsu\cs\sjsu\cs151\alice\Greeter.java


• Always run from the base directory


  java edu.sjsu.cs.cs151.alice.GreeterTest


• Greeter example with packages:
  File edu\sjsu\cs\sjsu\cs151\alice\Greeter.java
  from the base directory java-code/Ch1/hw-packaged/.
  Compile with: javac edu\sjsu\cs\cs151\alice\Greeter.java

  File edu\fau\cse\cop4331\GreeterTest.java
  from the base directory java-code/Ch1/hw-packaged/.
  Compile with: javac edu\fau\cse\cop4331\GreeterTest.java

  Execute application with: java edu.fau.cse.cop4331.GreeterTest


• Javadoc files, generated with this command:
  javadoc -d javadocs -private edu\sjsu\cs\cs151\alice\Greeter.java edu\fau\cse\cop4331\GreeterTest.java.

Exception Handling

• Example: NullPointerException


  String name = null;
  int n = name.length(); // ERROR


• Cannot apply a method to null
• Virtual machine throws exception
• Unless there is a handler, program exits with stack trace


  Exception in thread "main" java.lang.NullPointerException
   at Greeter.sayHello(Greeter.java:25)
   at GreeterTest.main(GreeterTest.java:6)


• Indicate error conditions by throwing exception object.
  For instance, for parameter validation:


  public double sqrt(double x)
  {
    if (x < 0.0)
      throw new IllegalArgumentException("invalid parameter: negative value");
    ....
  }


• javadoc for java.lang.Exception

Checked and Unchecked Exceptions

• Compiler tracks only checked exceptions.


• Checked exceptions are in general thrown for reasons beyond the
  programmer's control. Input, output operations may fail and
  throw exceptions (e.g. IOException, FileNotFoundException, ...)

• Unchecked exceptions are, generally, the programmer's fault,
  as the corresponding condition should not occur at all.

• NullPointerException and IndexOutOfBoundsException are not checked.
• Two approaches for dealing with checked exceptions

  • Declare the exception in the method header, indicating method may throw this type of exception
  • Catch the exception

Declaring Checked Exceptions

• Example: Opening a file may throw FileNotFoundException:


  public void read(String filename) throws FileNotFoundException
  {
   FileReader reader = new FileReader(filename);
   . . .
  }


• Can declare multiple exceptions


  public void read(String filename)
   throws IOException, ClassNotFoundException
  public static void main(String[] args)
   throws IOException, ClassNotFoundException


Catching Exceptions

• try
  {
   code that might throw an IOException
  }
  catch (IOException exception)
  {
   take corrective action
  }


• Corrective action can be:

  • Notify user of error and offer to read another file
  • Log error in error report file
  • In student programs: print stack trace and exit


    exception.printStackTrace();
    System.exit(1);


The finally Clause

• Cleanup needs to occur during normal and exceptional processing
• Example: Close a file


  FileReader reader = null;
  try
  {
   reader = new FileReader(name);
   ...
  }
  finally
  {
   if (reader != null) reader.close();
  }



• Exception example: UrlDump
  Takes an URL, reads the web page line by line and prints it to stdout.
  A custom UrlDumpException class is defined, with extra state identifying
  the faulty URL string.
• Sources:
  Class UrlDumpException from except/UrlDumpException.java
  Class UrlDump from except/UrlDump.java

  Javadoc generated documentation is at except/javadocs/index.html.

• Useful starting points for URL and streams.

Strings

• Sequence of Unicode characters
• (Technically, code units in UTF-16 encoding)

• length method yields number of characters
• "" is the empty string of length 0, different from null
• charAt method yields characters:
  char c = s.charAt(i);
• String objects are immutable.

Strings

• substring method yields substrings:
  "Hello".substring(1, 3) is "el"


• Use equals to compare strings
  if (greeting.equals("Hello"))
• == only tests whether the object references are identical:
  if ("Hello".substring(1, 3) == "el") ... // NO!

String concatenation

• + operator concatenates strings:


  "Hello, " + name


• If one argument of + is a string, the other is converted into a string:


  int n = 7;
  String greeting = "Hello, " + n;
   // yields "Hello, 7"


• toString method is applied to objects


  Date now = new Date();
  String greeting = "Hello, " + now;
   // concatenates now.toString()
   // yields "Hello, Wed Jan 17 16:57:18 PST 2001"


Converting Strings to Numbers

• Use static methods
  Integer.parseInt
  Double.parseDouble
• Example:


  String input = "7";
  int n = Integer.parseInt(input);
   // yields integer 7


• If string doesn't contain a number, throws a  NumberFormatException(unchecked)

Reading Input

• Construct Scanner from input stream (e.g. System.in)
  Scanner in = new Scanner(System.in)

• nextInt, nextDouble reads next int or double
  int n = in.nextInt();

• hasNextInt, hasNextDouble test whether next token is a number
• next reads next string (delimited by whitespace)
• nextLine reads next line


• Ch1/input/InputTester.java

• java.util.Scanner API documentation

The ArrayList<E> class

• Generic class: ArrayList<E> collects objects of type E
• E cannot be a primitive type

• add appends to the end


  ArrayList<String> countries = new ArrayList<String>();
  countries.add("Belgium");
  countries.add("Italy");
  countries.add("Thailand");


• since Java version 7 one can "replace the type arguments required to invoke the constructor of a generic class with an empty set of type parameters (<>) as long as the compiler can infer the type arguments from the context. This pair of angle brackets is informally called the diamond."
  Thus, the same code can be written as:


  ArrayList<String> countries = new ArrayList<>();
  countries.add("Belgium");
  countries.add("Italy");
  countries.add("Thailand");


The ArrayList<E> class

• get gets an element; no need to cast to correct type:
  String country = countries.get(i);
• set sets an element
  countries.set(1, "France");
• size method yields number of elements
  for (int i = 0; i < countries.size(); i++) . . .
• Or use "for each" loop


  for (String country : countries) . . .


The ArrayList<E> class

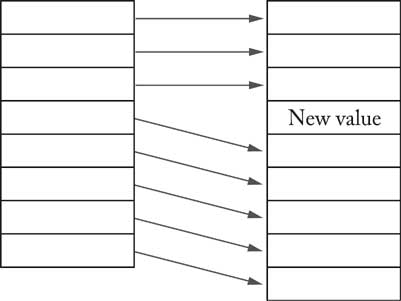

• Insert and remove elements in the middle
  countries.add(1, "Germany");
  countries.remove(0);
• Not efficient--use linked lists if needed frequently

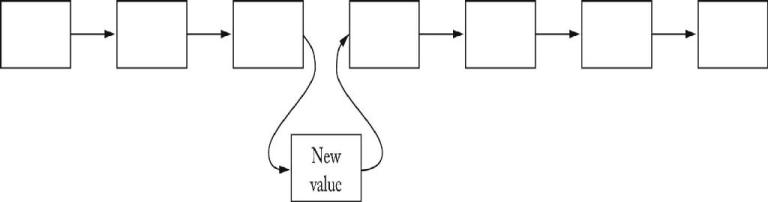

Linked Lists

• Efficient insertion and removal


• add appends to the end


  LinkedList<String> countries = new LinkedList<String>();
  countries.add("Belgium");
  countries.add("Italy");
  countries.add("Thailand");


• Use iterators to edit in the middle


List Iterators

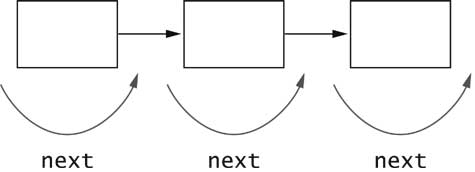

• Iterator points between list elements




List Iterators

• next retrieves element and advances iterator
  ListIterator<String> iterator = countries.listIterator();
  while (iterator.hasNext())
  {
     String country = iterator.next();
     . . .
  }
• Or use "for each" loop:
  for (String country : countries)

• add adds element before iterator position
• remove removes element returned by last call to next


Arrays

• Drawback of array lists: can't store numbers
• Arrays can store objects of any type, but their length is fixed
  int[] numbers = new int[10];

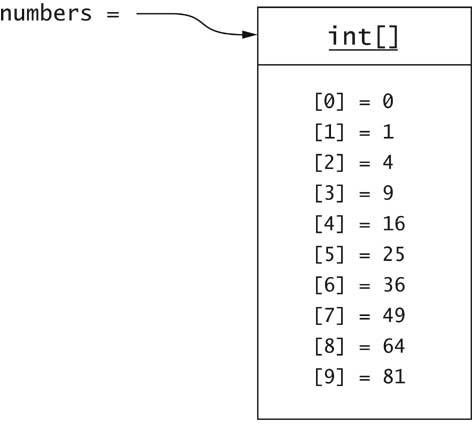

• Array variable is a reference



Arrays

• Array access with [] operator:
  int n = numbers[i];
• length member yields number of elements


  for (int i = 0; i < numbers.length; i++)


• Or use "for each" loop
  for (int n : numbers) . . .

Arrays

• Can have array of length 0; not the same as null:


  numbers = new int[0];


• Multidimensional array


  int[][] table = new int[10][20];
  int t = table[i][j];


Command-Line Arguments

• void main(String[] args)

• args parameter of main is initialized with command-line arguments
• Example:
  java GreeterTest Mars

• args.length is 1
  args[0] is "Mars"

Static Fields

• Shared among all instances of a class
• Example: shared random number generator


  public class Greeter
  {
   . . .
   private static Random generator;
  }


• Example: shared constants


  public class Math
  {
   . . .
   public static final double PI = 3.14159265358979323846;
  }


Static Methods

• Don't operate on objects
• Example: Math.sqrt
• Example: factory method


  public static Greeter getRandomInstance()
  {
   if (generator.nextBoolean()) // note: generator is static field
   return new Greeter("Mars");
   else
   return new Greeter("Venus");
  }


• Invoke through class:


  Greeter g = Greeter.getRandomInstance();


• Static fields and methods should be rare in OO programs

Programming Style: Case Convention

• variables, fields and methods:
  start with lowercase, use caps for new words:


  name
  sayHello


• Classes:
  start with uppercase, use caps for new words:


  Greeter
  ArrayList


• Constants:
  use all caps, underscores to separate words


  PI
  MAX_VALUE


Programming Style: Property Access

• Common to use get/set prefixes:


  String getName()
  void setName(String newValue)


• Boolean property has is/set prefixes:


  public boolean isPolite()
  public void setPolite(boolean newValue)


Programming Style: Braces

• "Allman" brace style: braces line up


  public String sayHello()
  {
   return "Hello, " + name + "!";
  }


• "Kernighan and Ritchie" brace style: saves a line

  public String sayHello() {
   return "Hello, " + name + "!";
  }


Programming Style: Fields

• Some programmers put fields before methods:


  public class Greeter
  {
   private String name;
   public Greeter(String aName) { . . . }
   . . .
  }


• From OO perspective, it is better to list the public interface first
• All fields should be private
• Don't use default (package) visibility

Programming Style: Miscellaneous

• Spaces around operators, after keywords, but not after method names


  Good: if (x > Math.sqrt(y))
  Bad: if(x>Math.sqrt (y))


• Don't use C-style arrays:


  Good: int[] numbers
  Bad: int numbers[]


• No magic numbers


  Good: h = HASH_MULTIPLIER * h + val[off];
  Bad: h = 31 * h + val[off];
